Limestone Processing

Limestone Processing (3).png

Limestone introduction:

Limestone is an important road building material and an important raw material for calcium carbide and cement.It is a solvent limestone in the metallurgical industry. After superfine grinding, high-quality limestone is widely used in the manufacture of paper, rubber, paint, coating, medicine, cosmetics, feed, sealing, bonding, polishing and other products.The compressive strength of limestone is generally around 150 MPa, which belongs to soft rock. Therefore, the production process of limestone production line adopt the impact crusher.The Dewo limestone production line is equipped with a proven XF impact crusher,this kind of crusher is a high-efficiency impact crusher, which is very suitable for crushing limestone, sandstone and other materials. 95% of the broken products are less than 45mm.


Limestone processing:

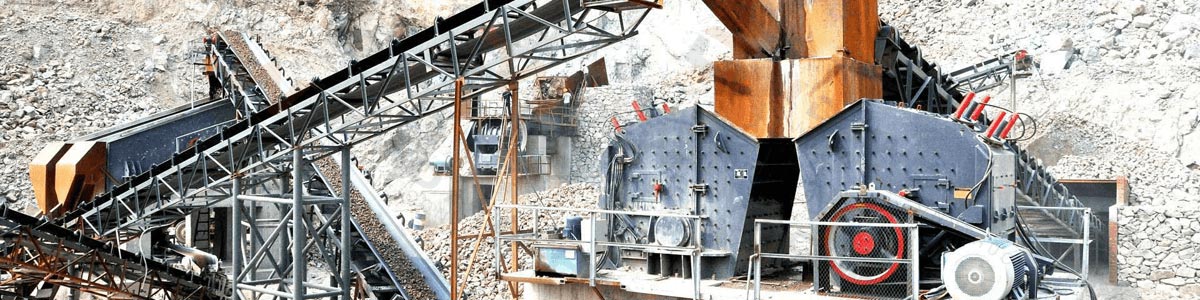

Dewo limestone production line equipped with high performance impact crusher,this kind of crusher is a high-efficiency impact crusher, which is very suitable for crushing limestone, sandstone and other materials. 95% of the broken products are less than 45mm.

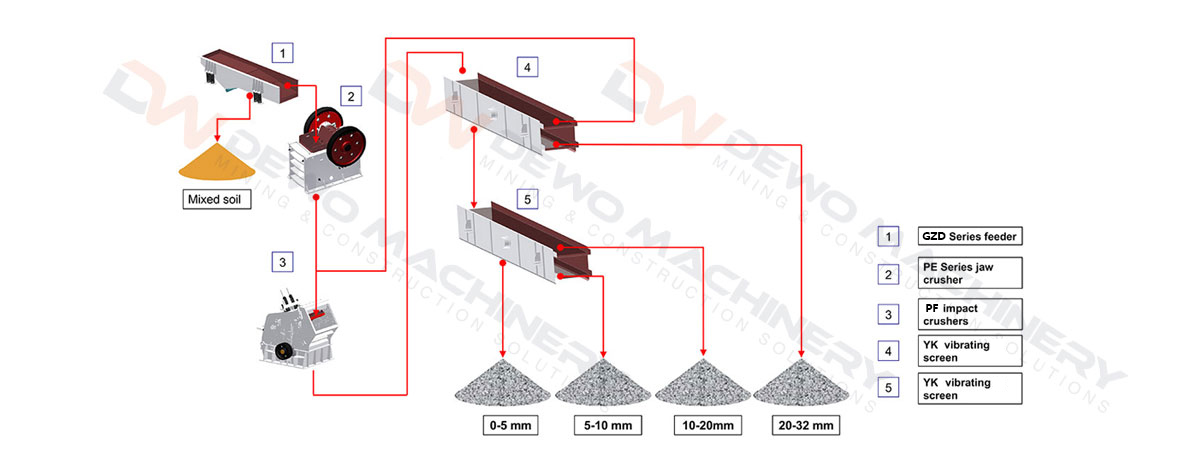

Firstly, the stone blasted from the mountain is uniformly fed into the jaw crusher through the feeder, and is initially broken.The coarsely crushed semi-finished product is conveyed to the impact crusher through a belt conveyor for further crushing.The crushed stone is conveyed to the vibrating screen through a belt conveyor to separate stones of different specifications.The stones that meet the customer's particle size requirements are transported to the finished product pile by a belt conveyor.The stones larger than the size of the upper screen are returned to the impact crusher by the belt conveyor and broken again to form a closed loop.


Applications:

Chemical, cement, construction, refractory and other industrial sectors are used for coarse, medium and fine crushing of medium hardness materials.


Equipment configuration:

vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor



Limestone processing technology:

The limestone production line has high crushing efficiency, low power consumption, strong adaptability (especially suitable for medium and hard brittle materials), large crushing ratio, simplified production process and investment saving.


Remarks:The production line is mainly based on the actual material size and the customer's requirements for product granularity. According to different production site conditions, Dewo engineers can provide customers with process planning and technical support, and we can also design non-standard according to the actual installation conditions of customers and supporting components, etc., we strive to achieve a reasonable and economical production line for customers.




Thank you for your interest in Dewo. Please feel free to contact us for related products, production lines, etc. We will reply with you as soon as possible !
