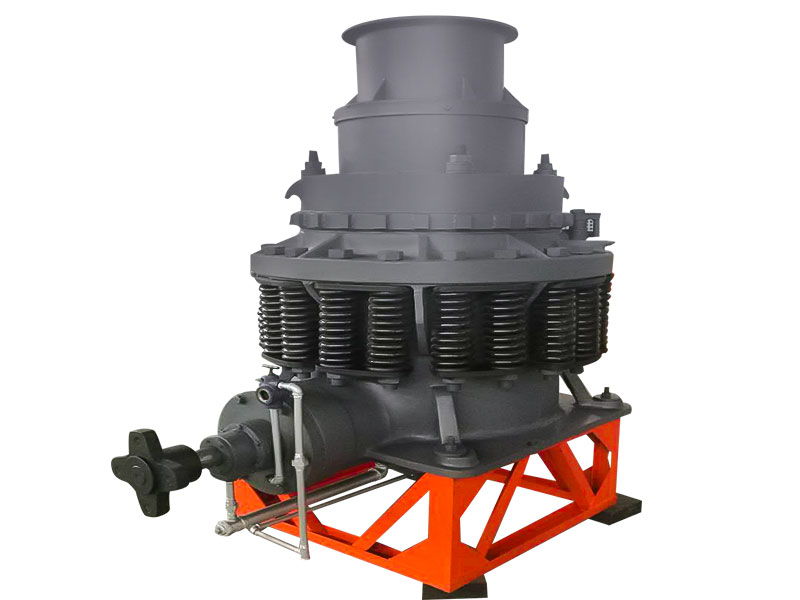

Spring Cone Crusher

  • PY

    Series
  • 35-300

    Max. Feeding Size(mm)
  • 30-280

    Motor Power(kw)
  • 12-800

    Capacity(t/h)
  • 3-60

    Adjustable Discharge Opening(mm)

Applications

Spring Cone Crusher Introduction


PY Series Spring Cone Crusher is suitable to crush all kinds of ores and rocks with medium hardness and above. It has features of reliable structure, high efficiency, high capacity,low operating cost,easy adjustment ,economical to use and so on. Spring system plays the role of overload protection, which will enable the exotic materials or steel piece to pass through the crushing chamber without any damage to the machine. It adopts grease seal to isolate dust and lubricants, therefore ensure its reliable operation. According to customer demand, respectively, using standard type, medium type and short head type for coarse crushing, medium crushing and fine crushing operation.

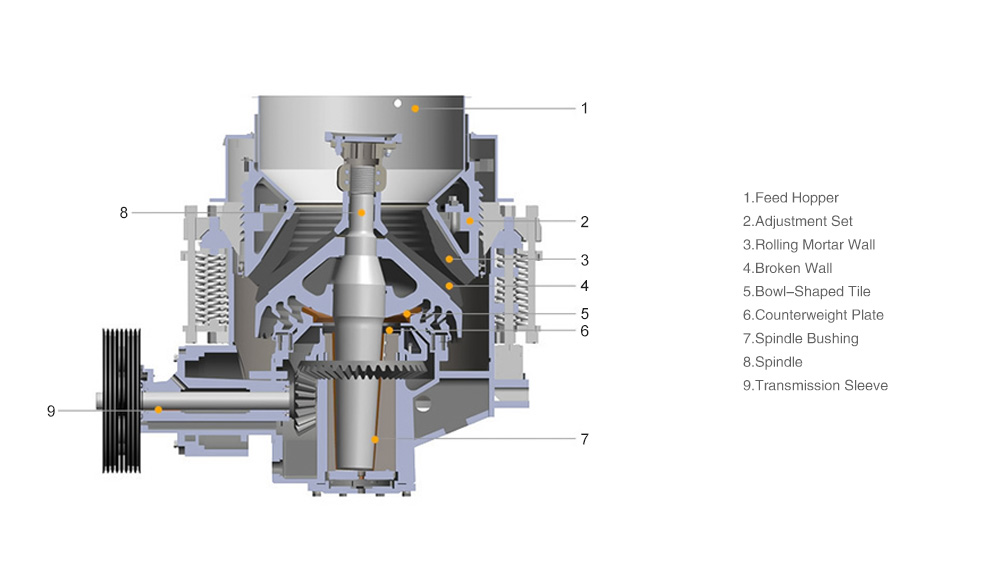

PY Spring Cone Crusher Stucture


PY Spring Cone Crusher Working Principle


PY Series Spring Cone Crusher is mainly composed of frame, fixed cone assembly, moving cone assembly, spring mechanism, bowl type shaft frame and transmission; its auxiliary part is composed of electrical system, thin oil lubrication system and hydraulic clear chamber. System composition. During operation, the motor drives the eccentric sleeve through the V-belt, the large pulley, the transmission shaft, the bevel gear, and the large bevel gear. The broken cone axis is rotated under the eccentric bushing, so that the wall surface is broken. Close to the surface of the rolling wall, and then the material is continuously crushed, crushed and bent in the annular crushing cavity composed of the fixed cone and the moving cone. After multiple extrusions, impacts and bending, the material is broken to the desired particle size and discharged through the lower portion.


PY Series Spring Cone Crusher Features & Advantages


1. Strong crushing force; High efficiency; High crushing capacity
2. Low operation and maintenance cost, easy to adjust
3. As spare parts selection and structural design is reasonable, the lifespan will be longer
4. Reducing downtime
5. Different types of crushing chambers to satisfy different customers’ requirement
6. High reduction ratio, high performance, low power consumption, and uniform size products


Spring Cone Crusher Parameters


Model

Max Feeding Size
  (mm)

Adjusting Range of Discharge Opening
  (mm)

Capacity
  (t/h)

Motor Power
  (kw)

Dimension
  (mm)

PYB-600

65

12-25

20-40

30

2223×1370×1675

PYD-600

35

3-13

12-23

30

2223×1370×1675

PYB-900

115

15-50

50-90

55

2692×1640×2350

PYZ-900

60

5-20

20-65

55

2692×1640×2350

PYD-900

45

3-13

15-50

55

2692×1640×2350

PYB-1200

145

20-50

110-168

110

2790×1878×2844

PYZ-1200

100

8-26

42-135

110

2790×1878×2844

PYD-1200

50

3-15

18-105

110

2790×1878×2844

PYB-1750

215

25-60

280-480

155-160

3910×2894×3809

PYZ-1750

185

10-30

115-320

155-160

3910×2894×3809

PYD-1750

85

5-15

75-230

155-160

3910×2894×3809

PYB-2200

300

30-60

490-800

260-280

4622×3302×4470

PYZ-2200

230

10-30

200-580

260-280

4622×3302×4470

PYD-2200

100

5-15

120-370

260-280

4622×3302×4470
