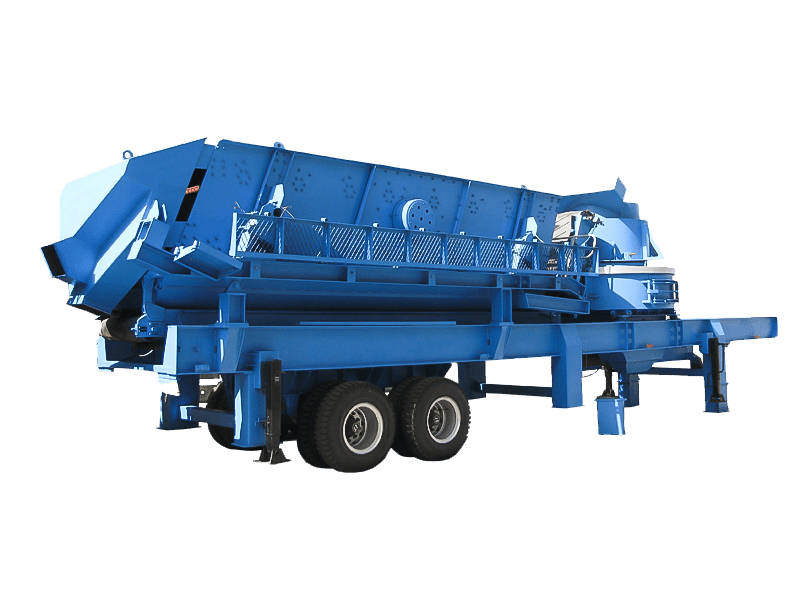

DWP Series Portable Sand Making Plant

  • 80-350

    Capacity(t/h)
  • 110-700

    Power(kw)
  • 28-37.8

    Weight(t)
  • Tire drive

    Drive mode

Applications

Product Introduction:

Mobile Vertical Shaft Impact Crusher Plant is equiDWPed with Dewo high performance vertical shaft impact crusher (sand maker) vehicular feeder and vibrating screen. It is short length, light weight, well- adapted. No matter coarse crushing, fine grinding, it can bring you unexpected effect.

Feeding size: 65-80mm

Production capacity: 80-250t/h

Applications: Recycling of mines, coal mines, garbage and construction waste, earth and stone works, urban infrastructure, roads or construction sites.

Applicable materials: Artificial sand making of river pebble, rock (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, and stone chips.



Mobile vertical shaft impact crusher plant features:

1. High performance crusher

2. Vehicular feeder, vibrating screen, belt conveyor

3. Traction steering shaft, be convenient to highway transportation

4. Vehicle installation, equipment can be installed on the scene conveniently

Be equipped with motor and control box.

Working principle:

The materials was per-selected by vibrating feeder, and then crushed by vertical shaft impact crusher. The vibrating screen can realize cycle crushing and effectively reduce the procedures of sand making. The finished products are sent out by belt conveyor and crushed continuously.

Structure:

All parts of the sand crusher moving crushing station are placed on the moving frame.Including: stable and sturdy chassis, efficient sand making machine, screening equipment, belt conveyor, electric motor and electrical control system, as well as optional hydraulic auxiliary system, environmental dust removal system, maintenance platform.


Scope of use:

1. It is widely used in the mechanism sand of river pebble, rock (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, and stone chips.

2. And shaping the product grain shape to reduce the needle-like content of the finished material;



Parameters


DWP series mobile vertical shaft impact   crusher plant

Category

Type

Name

DWP371LXV33S

DWP371XV42S

DWP371XV43S

DWP431XV51S

DWP431XF52S

Shipping size

Length

11280

15470

15050

15420

14980

Width

2780

2780

2780

2780

3100

Height

2500

4180

4380

3250

4170

Weight

28

32.6

32.9

32.7

38.7

Vertical shaft impact crusher

Type

XV311D

XV371M

XV371M

XV371H

XV371H

Maximum feeding size

65(80)

70(100)

70(100)

70(100)

70(100)

Pass amount

80-150

120-250

120-250

180-350

180-350

Vibrating screen

Type

3YK6X1545

2YK6X1860

3YK6X1860

YK6X2160

2YK6X2160

Under the belt conveyor

Type

B800X7.2Y

B1000X8.6Y

B800X7.4Y

B1000X8.6Y

B1000X8.2Y

Frame axle number

Number of axes

2

2

2

2

3

Remarks: The above parameters are for   reference only. If there are any updates or changes, the technical data shall   prevail.


Note:

1. The processing capacity is the data when the density of the broken material is 1.6x103 kg/m3. The production capacity is related to the physical properties of the crushed material, the feeding mode, the feeding granularity and its composition;

2. Our products are constantly updated and improved, Devo reserves the right to change parameters and design without first notifying the user;

3. The above product configuration is not necessarily the factory standard configuration. Please consult us in detail when purchasing.
